Transparent LCD Hologram Display Box adopts a transparent LCD panel as a see-through showcase. A physical product is placed inside the cabinet. While the front screen plays videos, 3D renders and spec overlays, it remains transparent, making digital content seem to float around the real item. Audiences can view both the physical exhibit and its digital introduction simultaneously, unlike traditional black-screen displays.
Powered by built-in Android, this all-in-one unit requires no external PC or media player. It plays media via USB or internal storage and supports APK installation for product videos, loop campaigns and AI digital human content. An optional IR touch layer enables interaction: users tap to switch content and turn static display into two-way engagement.
Tempered glass safeguards the transparent LCD for public use. It exposes USB, HDMI, network and power ports for local content upload, external signal input or wired network connection. Three versions are optional: Android for standalone playback, Windows for full PC functions, or HDMI-input for use as a transparent monitor with customer’s own player.
Transparent screen display: a transparent LCD panel with real merchandise placed inside the chamber while the screen plays digital content above it, overlaying virtual imagery on the physical object.
Multimedia playback: Android-based playback of images and videos from a USB drive or the internal memory; APK applications can be installed; video ads and digital human material run on a continuous loop.

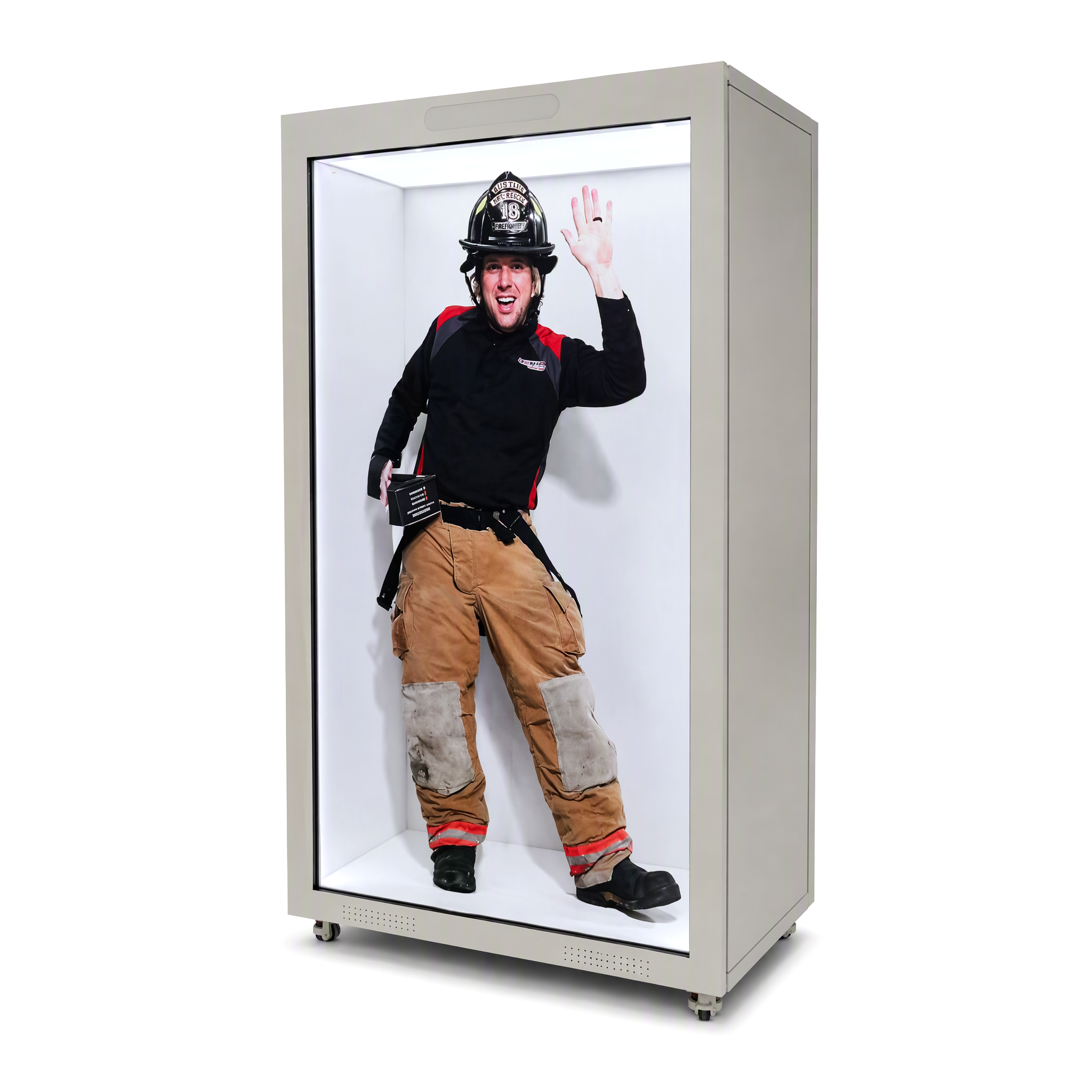

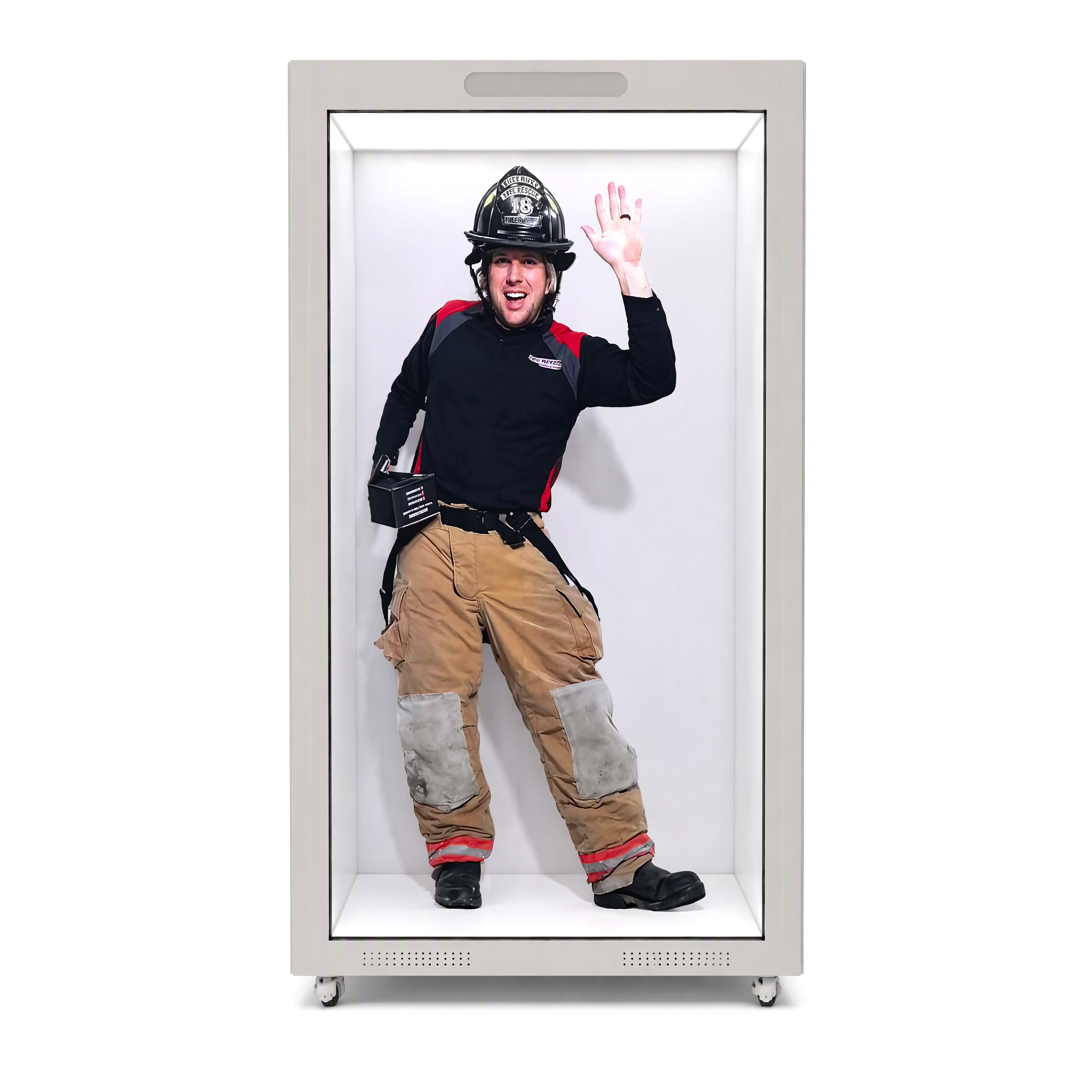

AI digital human presentation: load virtual digital human video and the cabinet works as a greeter, narrator or performer – welcoming visitors, explaining an exhibit or running a scripted show. Suited to exhibition halls and showrooms.
Optional touch interaction: IR touch with multi-point support is available as an option. Visitors tap the screen directly to switch material, run a Q&A sequence or select an option.

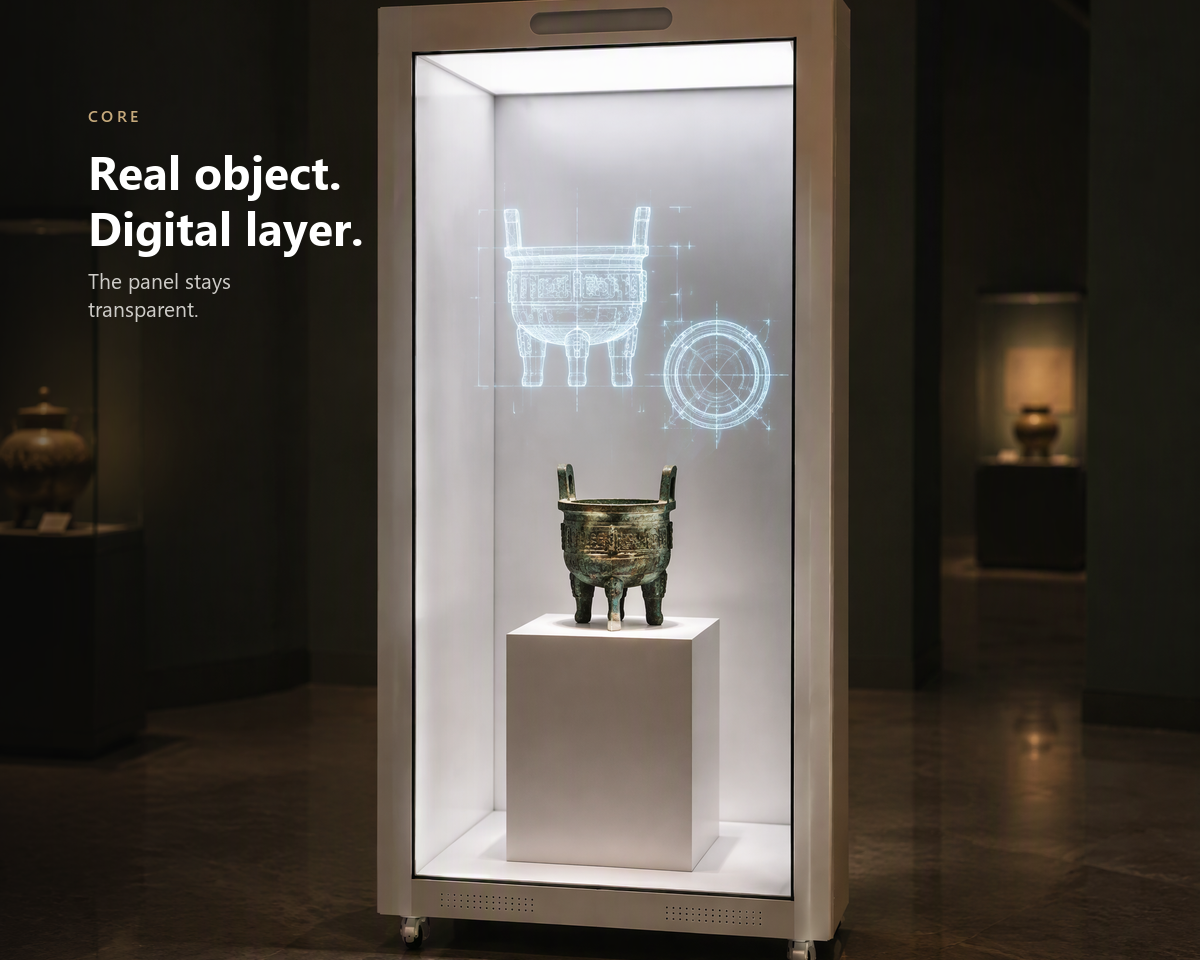

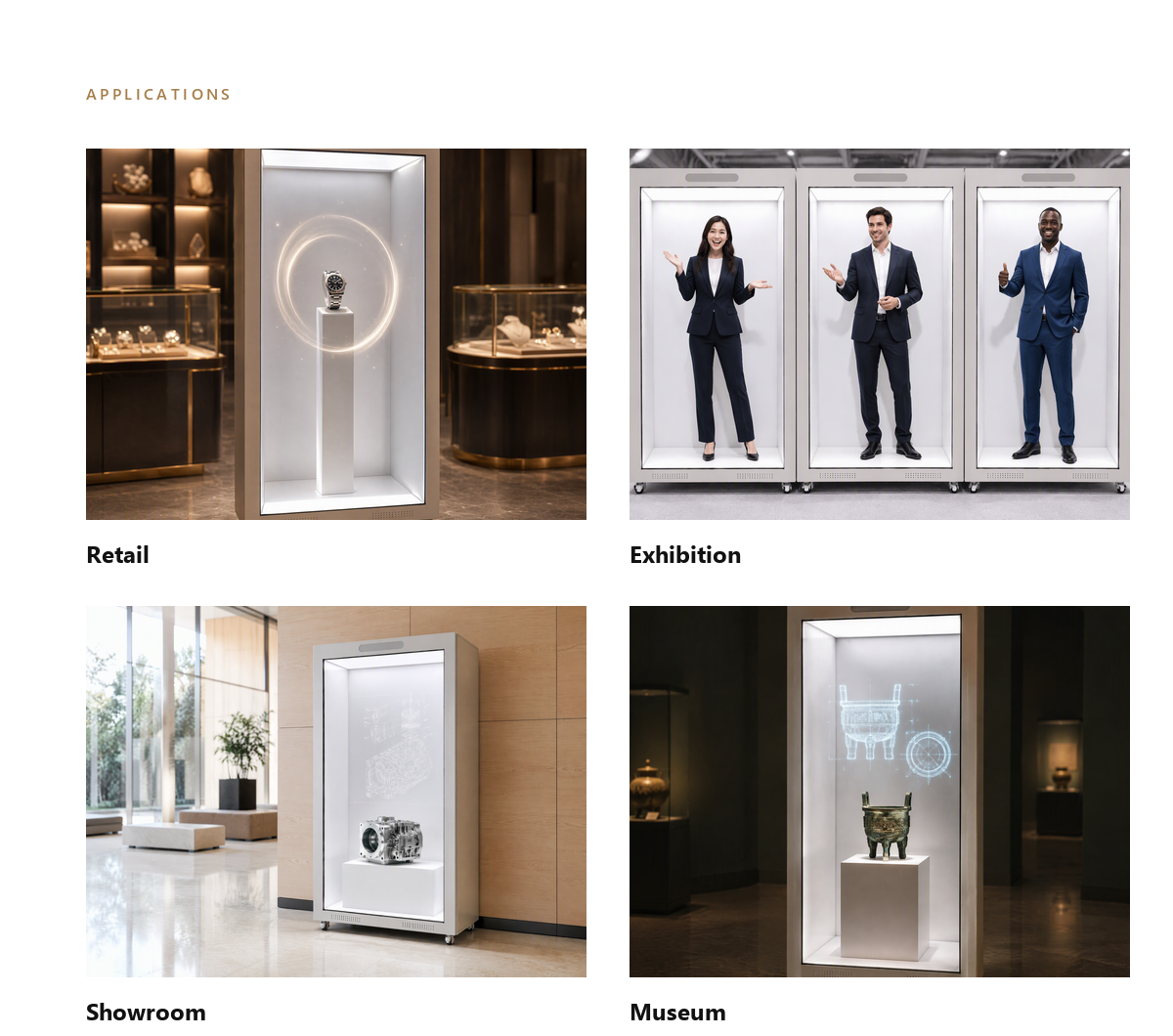

Museums and science centers: a real exhibit inside the chamber, with animation, cutaway views and historical background playing on the transparent screen in front of it.
Retail (jewelry and luxury): rings, necklaces and watches presented as real pieces, with virtual effects, craft details and collection stories layered over them.
Government halls and trade shows: AI digital human greeting visitors and touch Q&A guiding them through the content.
Corporate showrooms and commercial advertising: product models and components presented with floating technical data, or brand campaigns run as a see-through advertising surface.
|
Item |
Specification |
|
Product type |
Transparent LCD hologram display box / hologram showcase |
|
Screen type |
Transparent LCD panel |
|
Screen size |
86 inch |
|
Resolution |
2160(RGB)×3840, UHD |
|
Brightness |
400 nits |
|
System |
Android system standard; Windows system or HDMI-in display solution optional |
|
Playback |
USB drive and built-in memory; image and video loop playback; APK installation supported |
|
Touch function |
Non-touch screen / IR touch screen |
|

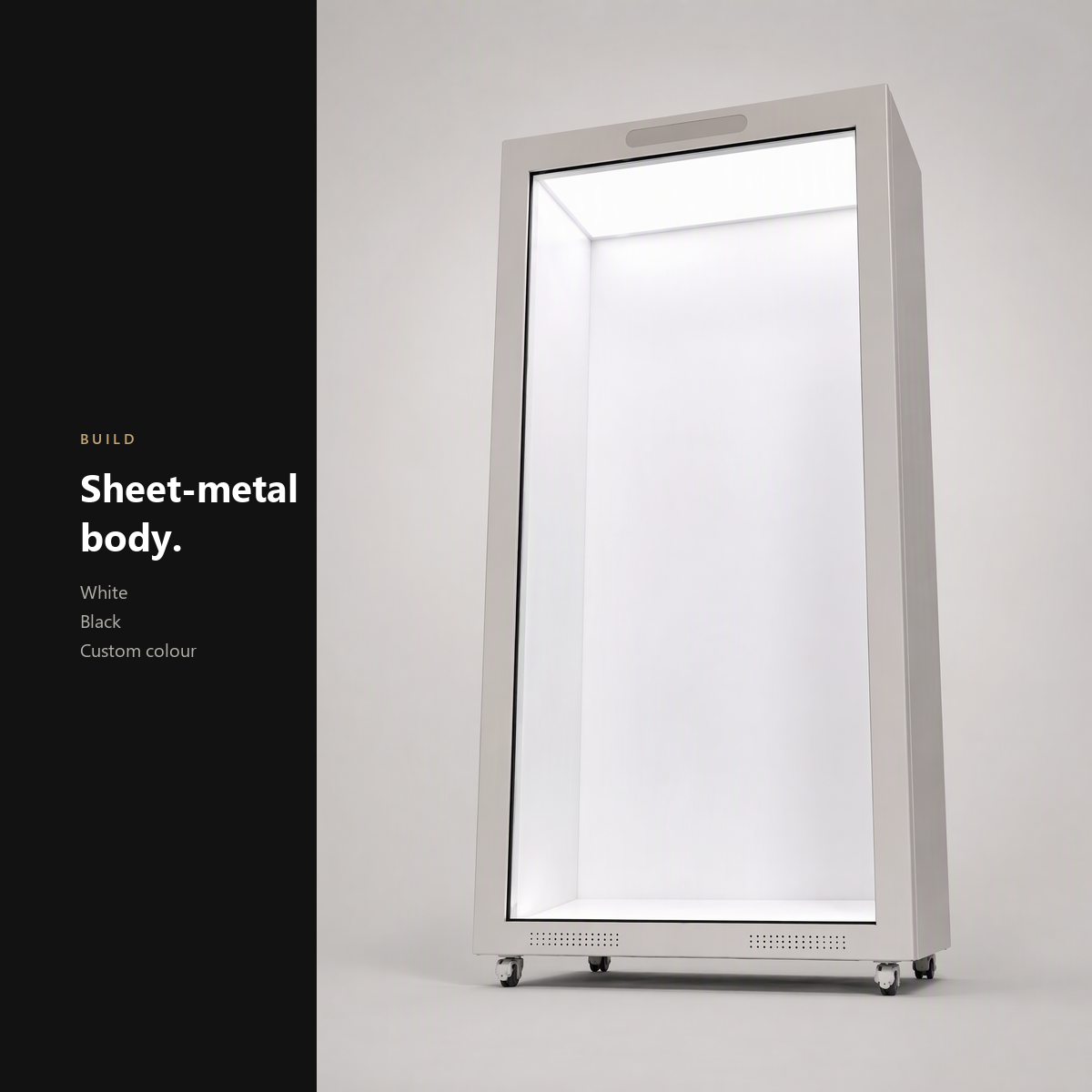

Housing |
Enclosed sheet metal cabinet, powder-coated; white / black or other colors on request |
|
Front protection |
Tempered glass over the transparent LCD panel |
|
Interfaces |
USB, HDMI, network port (RJ45), power input |
|
Boot behavior |
Auto power-on and loop playback |
|
Formats |
Horizontal tabletop unit / vertical floor-standing cabinet; multiple units can be arrayed side by side |
|
Warranty |
1 year |
True See-Through Display
The LCD panel stays transparent while it plays, so graphics float in front of the object instead of hiding it. This is the core difference from a conventional black-screen digital showcase.
Object and Information in One Frame
The real product and its digital layer are captured in a single view. Buyers inspect the item with their own eyes while the screen explains material, certification, price or origin, which shortens the decision time at the counter.
Content Changes Without Reprinting
Product films, prices and campaign visuals are replaced through USB or the internal memory. New collections, seasonal themes and additional languages no longer require printed cards or a service visit.
A Digital Human as Presenter
The cabinet can carry an AI digital human as the front-of-house voice – greeting, explaining and performing on loop, so a booth or a hall keeps a presenter on station through the whole opening day.
Interaction Where It Matters
The optional IR touch layer turns the transparent screen into an input surface. Visitors select the item, the language or the question themselves instead of waiting for a scheduled loop.
Q1: What is the biggest difference between this product and an ordinary glass showcase?
A: An ordinary glass showcase can only present the physical object. This cabinet adds a transparent LCD layer in front of the chamber, so the object can be presented together with moving content, specification overlays and brand storytelling while remaining fully visible.
Q2: Can customers still see the product behind the screen?
A: Yes. The screen is see-through, so the merchandise inside the chamber stays visible while content is playing. The transparent layer adds information on top of the object instead of replacing it.
Q3: What kind of content works best?
A: Short looping videos, 3D product renders and clean specification overlays work best. Content with a dark or busy background reduces the see-through effect, so we recommend light, high-contrast graphics with generous empty space.
Q4: Which format should I choose, tabletop or floor-standing?
A: Choose the tabletop model for counters, reception desks and display tables where the viewer stands close. Choose the floor-standing model for windows, halls, showrooms and exhibition booths, especially where you plan to array several units together.
Q5: How is the content updated?
A: Content plays from a USB drive or the internal memory, so the routine update is copying a new file set. APK applications can be installed on the Android/Windows OS version.
Q6: Can I have Windows or HDMI-in instead of Android?
A: Yes. The cabinet is offered with three display solutions: Android for standalone playback, Windows where a full PC environment is required, and HDMI-in, where the cabinet works as a transparent monitor driven by your own player.
